RIV NUT INSTALL TOOL (M6)

A simple solution for getting the install done.

The TRAIL ICON RivNut Tool is an affordable, no-frills installation solution designed to help you properly install M6 rivet nuts and M6 jack nuts when mounting TRAIL ICON products.

This tool exists for one reason:

to give you a reliable way to complete your install without needing to purchase a large, expensive dedicated rivet nut tool you may only use once.

⸻

WHAT’S INCLUDED

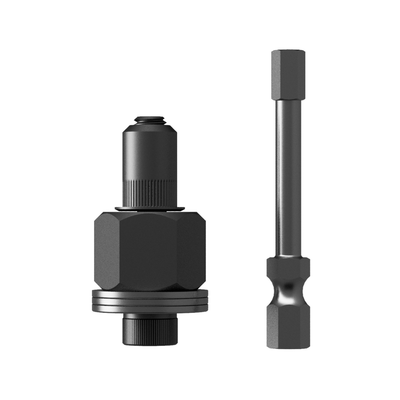

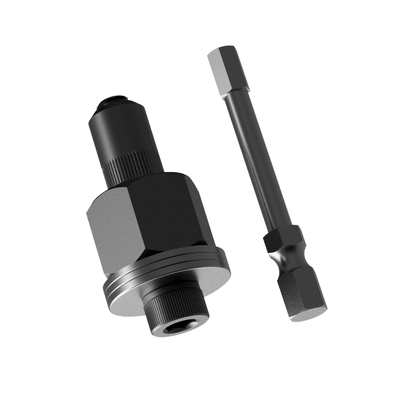

• RIV Nut Tool Assembly (M6)

• 1× M6 Rivet Nut

• 1× M6 Jack Nut

• 1× 35mm M6 Screw

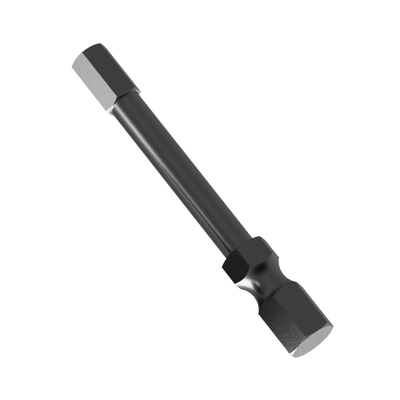

• 5mm Hex Bit (standard 1/4” drive)

⸻

INTENDED USE

• Installation of TRAIL ICON products requiring:

• M6 rivet nuts (nut serts)

• M6 jack nuts

• Light-duty installs in thin material

• Occasional use during product installation

⸻

IMPORTANT NOTES

• This is not a replacement for a professional or multi-size rivet nut gun

• Designed for M6 hardware

• Intended as an installation aid, not a permanent shop tool

• Over-torquing may damage the tool or hardware

⸻

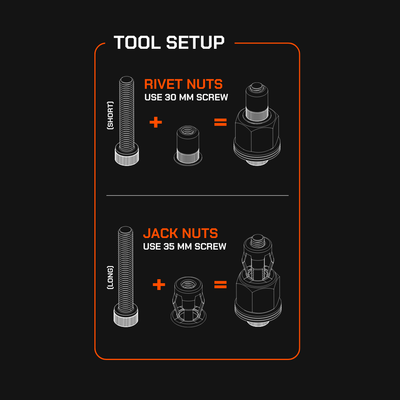

TOOL SETUP

• Rivet Nuts: Use a 30mm M6 screw

• Jack Nuts: Use a 35mm M6 screw

(Reference setup diagram included)

⸻

BACKED BY TRAIL ICON

Even though this is a budget-friendly solution, it’s still covered by the Trail Icon Warranty.

If the tool fails during proper use on a Trail Icon install, we’ve got you covered.

⸻

WHY WE OFFER THIS

We created this tool as a low-cost add-on so you can complete your install confidently—without forcing you to invest in specialty tools you may never use again.
