FLOOD LENS FOR C2. 2.0 LED PODS

Features

• Clear replacement lens for C2 2.0 LED Pod
• Made out of durable polycarbonate, with preinstalled o-ring seal
• Advanced TIR optics provide high efficiency and focus

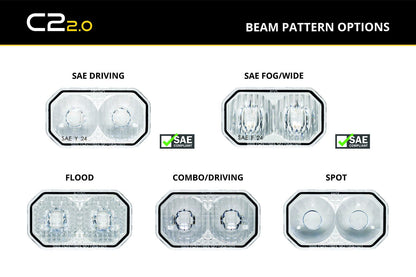

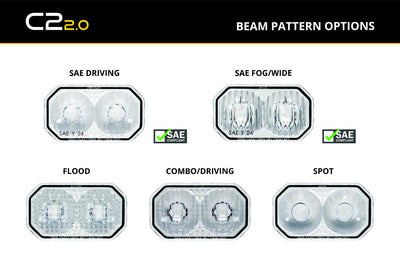

• Available in SAE Driving, SAE Fog/Wide, Flood, Combo/Driving, or Spot beam patterns

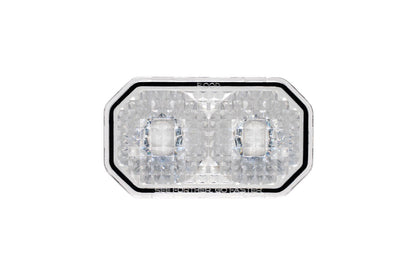

Overview. This clear lens is a direct replacement for the original main lens in your C2 2.0 LED Pod. It can be used to change both the color and output pattern, with a quick swap! Made of durable optical-grade polycarbonate, each lens comes with an integrated o-ring to maintain a watertight seal.

Colors. The C2 2.0 now uses the same high-output Cool White LED chips for both white and yellow LED pods. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white!

Easy Swap. Changing the main lens in the C2 2.0 takes just a few seconds! Remove the four torx-head screws from the back frame, pull the old lens and o-ring assembly out, and put in your new lens, which comes with the o-ring preinstalled. Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean. The locating pins ensure correct alignment and rotation. Reinstall the four screws so they are very hand-tight, and you are ready to shine in your new color or beam pattern!

Focused Performance. Our patented TIR (Total Internal Reflection) optics in the C2 2.0 have been re-engineered for up to 120% more intensity and more usable light output compared to the C2 1.0. The TIR optics harness all of the light from the LED and direct it precisely where you need it, cutting glare and boosting efficiency. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before.

The Combo/Driving pattern has been completely redesigned to deliver a better blend of width and distance compared to the legacy model. The C2 2.0 Combo/Driving optic uses advanced pillow optics to shine light downrange in a rectangular pattern of 55x20 degrees. The Combo/Driving pattern is great for all-around use.

SAE Driving is designed to supplement your high beams, but it's also great for general illumination, providing extra width. The new C2 2.0 Driving pattern measures 20x12 degrees, providing the perfect width to fully illuminate the road ahead at high speeds.

SAE Fog/Wide uses our distinctive FineLine optic, which provides an exceptionally wide pattern. The SAE Fog/Wide optic shines with a 90x10 degree pattern to fully illuminate the area directly in front of your vehicle.

Flood pattern provides a uniform, even illumination with a broad 70x45 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses advanced pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers, campsites, and work areas.

Spot shines light directly from the unmodified TIR optic in a tight, long-distance beam, resulting in a highly focused 8-degree beam of light. The Spot pattern is perfect for directing light far into the distance.

Warranty. Diode Dynamics Stage Series LED lighting comes with a 3-year replacement warranty, as well as a limited lifetime warranty. If you choose to disassemble and replace the lens on your C2 2.0 LED pod, you still keep your limited lifetime warranty intact. However, we may require the light to be sent in for any service and repair, rather than immediate replacement.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
